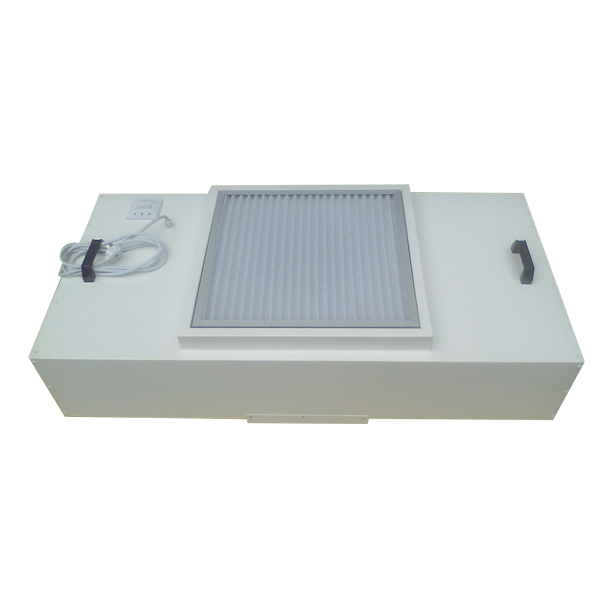

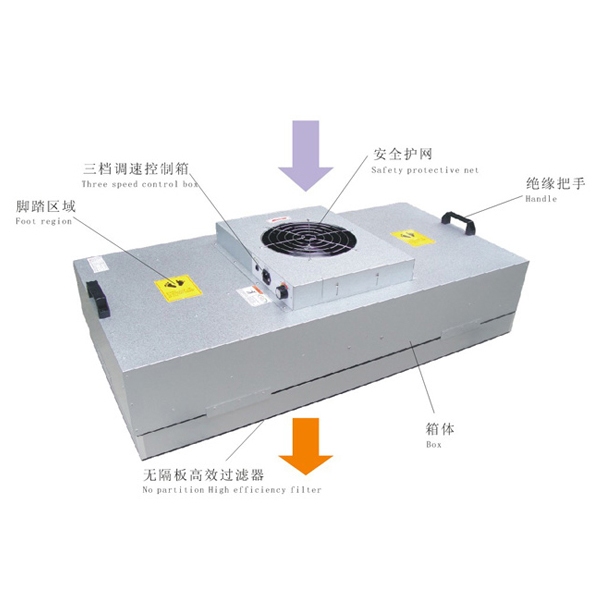

FFU (FAN FILTER UNIT) for clean room Fan filter unit can be connected for modular application. It is widely applied to clean room, clean bench, clean production line, assembled clean room or partial class 100 clean booth.FFU has both PRE filter and HEPA filter, and it is equipped with air volume adjustable spin-put centrifugal fan which intakes the air from the top of FFU. The clean air will be evenly blown out through the whole air outlet at a wind velocity ranging from 0.35 to 0.6 m/s Material for casing: Cold Rolled steel with powder coated/galvanized aluminum sheet/SUS#201 or 304 Blow fan: AC220V/50HZ/1PH Air velocity: 0.35-0.6 m/s Noise: about 60bBA Optional: Control panel, Remote control, PRE filter, Pressure gauge Features: 1.Low energy consumption 2.Low noise 3.Uniform velocity and large airflow 4.Can remote controlled by computer Fan filter Unit Applications: 1. For the ceiling of clean room 2. For the clean booth 3. Precision machinery 4. Laser industry precision machinery 5. The production lines which require high purification grade. 6. Pharmacy, medical science and hospital Standard Size and Specifications:
Model | HT-FFU610 | HT-FFU915 | HT-FFU1170 | HT-FFU1220 | ||||
Size for cabinet(mm) | 610x610x365 | 915x610x365 | 1170x570x365 | 1220x610x365 | ||||
Material | Cold Rolled steel with powder coated/galvanized aluminum sheet/SUS#201 or 304 | |||||||
Air flow(m3/h) | 600 | 900 | 1080 | 1200 | ||||
Air velocity | 0.35-0.6 m/s | |||||||
ESP | 80-120pa | |||||||
Hepa fiter |
Size(mm) | 610x610x69 | 915x610x69 | 1170x570x69 | 1220x610x69 | |||
Frame | Aluminum profile | |||||||
Media | Fiberglass | |||||||
Efficiency | H13 @0.3um | |||||||
Pressure Drop | 220pa | |||||||
Pre filter | Size(mm) | 495x495x21 | ||||||
Frame | Aluminum profile | |||||||
Media | Non-woven fabric | |||||||
Efficiency | G3 | |||||||
Pressure Drop | 30pa | |||||||
Fan(motor) | Power | AC 220V/50Hz | ||||||
Optional | Control panel, Remote control, PRE filter, Pressure gauge | |||||||
Noise(dB) | 50 | 50 | 52 | 53 | ||||
Weight(KG) | 22 | 24 | 28 | 32 |
