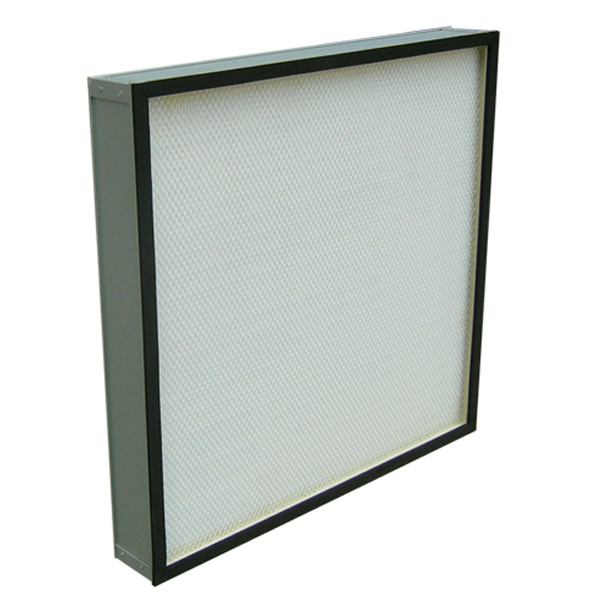

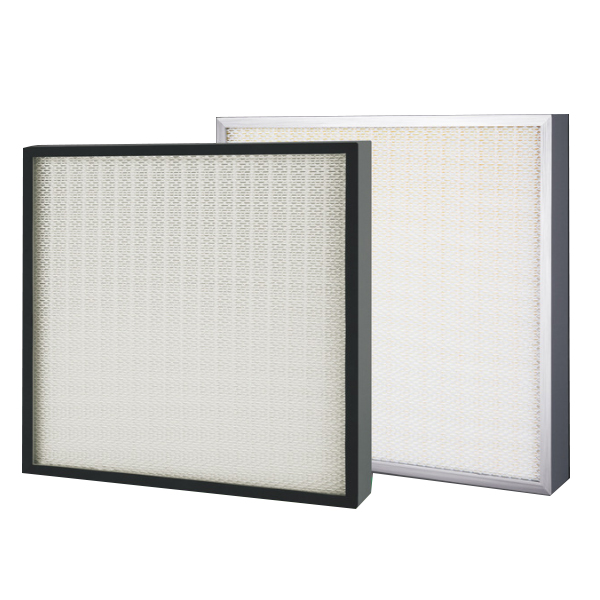

Mini-pleated Panel HEPA Filter Characteristics: 1. HEPA panel filter is the finally filtration in clean room that is used for filtering the particles more than 0.3um. 2. The filter media adopts the ultra-thin glass fiber, the hot-melt glue spacing each pleats in regular so that achieve high dust volume. All of the media area can be used completely. 3. The aluminum or galvanized frame so that it is anticorrosion for long time. 4. The sealant around the media so that the air filter is without any air leaking. 5. The both sides of air filter are metal screens with power coated so that the media is without any damage. 6. Laser to scan each air filter one by one-Hepa filter. 7. HEPA filter efficiency range: H10, H11, H13, H14 95%-99.99995%(EN1822). 8. Each air filter accompanies a test report. 9. Technical Specifications : Flange Type & Box Type Sizes Available; 10. Depth: 50mm, 69mm, 80mm and 90mm Filtration Rating: 0. 3 Micron & More; Material and details: Frame Material: Aluminum /Galvanized; Separator: hot-melt Filtration Efficiency: 99 –99. 995 %; Filter Media: Glass Fiber Media / Spun Bonded Polyester Media. Maximum operating temperature: 80℃ Maximum operating humidity: 100% Application Area: HEPA filter: Many critical applications in healthcare, science and high technology manufacturing require the highest standards of air filtration. HEPA filters are manufactured to the most exacting standards for such applications that include: clean rooms, hospital operating theatres, biological containment laboratories, laminar flow clean benches and safety cabinets, food processing plants, research laboratories.
Standard size and specification:Model | Dimension WxHxD (mm) | Rated air flow (m/h3) | Initial drop (Pa) | Final drop (pa) | Class (EN1822) | Efficiency |
HT-MH-6102 | 610x610x69 | 1000 | 200 | 400-600 | H10-H14 | 99% 99.995% |
HT-MH-9152 | 915x610x69 | 1500 | 200 | 400-600 | H10-H14 | 99% 99.995% |
HT-MH-1170 | 1170x570x69 | 1800 | 200 | 400-600 | H10-H14 | 99% 99.995% |
HT-MH-1220 | 1220x610x69 | 2000 | 200 | 400-600 | H10-H14 | 99% 99.995% |
HT-MH-6103 | 610x610x90 | 1300 | 200 | 400-600 | H10-H14 | 99% 99.995% |
